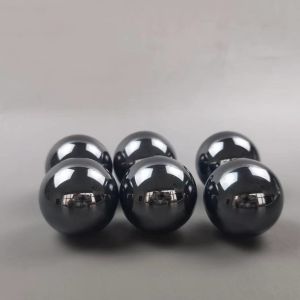

Valve Silicon Carbide Ball Ceramic For Pump 20-60mm

  • 1
  • 2

Brand Name : CSQ

Model Number : Non

Place of Origin : China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 pieces in 20 work days

Delivery Time : 20 work days

Packaging Details : Foam+carton box

Name : Customized ceramic valve ball

Material : Pressureless sintered silicon carbide

Size : Customized range: 20-60 mm

Precision : G20-G40

Technology : Pressureless sintering technology

Use : To plug the valve pump

MOQ : 50 pieces

Pakage : Foam+carton box

Contact Now

Customized Ceramic Valve Ball In Material Of Silicon Carbide For Pump

Description of SSiC Ceramic Valve Ball:

Our silicon carbide balls are made of highly purified, sub-micron silicon carbide material and are sintered by pressureless sintering technology, so the properties of silicon carbide are highly improved. Because of our recipe and manufacture advantages, our valve balls can reach high precision and possess lower leak of liquid. SSiC material has many advantages, like high strength and high hardness (2800 HV5) low density (3.15-3.18 g/cm3) and low thermal expansion ( 4.0 (10-6/℃) ) so its maximum work temperature is 1650℃. Besides, it has superior chemical stability,resistance to fast all kinds of acid and alkali corrosion, even in hydrofluoric acid they can work for a period of time too.

Material Properties Units SSiC
Density g/cm3 3.15-3.18
Porosity % 0
Fledural Strength MPa 550
Elastic Modulus GPa 410
Hardness HV5 2800
Fracture Toughness KIC MPa.m1/2 4.6
Maximum Use Temperature ℃
(℉)		 1650
(3000)
